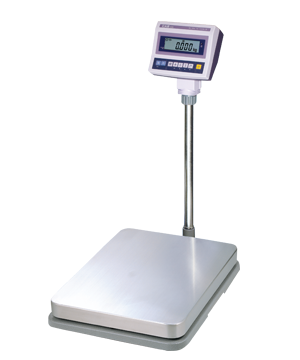

Deskripsi Timbangan Duduk CAS DB II
DB-II
| Bench Scale | |||
| The most versatile scale just got better with | |||
| more advanced features you need | |||
| New DB-II with a pivating large display is designed | |||
| provide the users with ease of use and flexibility. | |||
| DB-II has more advanced function and features such as | |||
| percentage weighing, counting, cumulative weight sum | |||
| modes and the weighing comparason. Let DB-II be your | |||
| total solution in your weighing environment. | |||
| DB-II series Bench Scale | |||
| VFD & LCD display | |||
| DB-II is equipped with alarge 20mm | |||
| display. User will be able to see | |||
| on display information in a distance. | |||
| VFD or LCD | |||
| display is available | |||
| Pivot / tilt indicator | |||
| Now you can move the indicator box in all directions | |||
| to have the best viewable angle | |||
| indicator box can be detached for wall mounting | |||
| Weighing function | |||
| ● General Weighing mode | |||
| ● Percentage weighing Mode | |||
| ● Cumulative weight sum mode | |||
| ● Weighing comparison ( HI / LOW / OK) | |||
| ● Tare /Hold | |||
| ● Counting mode | |||
| CAS Printer | |||
| Printer every Weighing modes with real | |||
| time stamp using CAS DEP-50 | |||
| DB-II is compatible with many | |||
| serial printer. | |||
SPECIFICATIONS
| Model |
DB – II (Basic) |
DB- F |
| Capacity |
6,15,30,60,150,300kg |
60,150,300kg |
| Display |
LCD |
VFD |
| Function Designator |
STABLE, ZERO, HOLD, NET, HI/OK/LO,%,PCS, SUM, Low Battery |
|
| Resolution |
Dual Interval 1/3000~1/7,500 |
|
| Interface |
RS232 |
|
| Power |
DC 9V Adaptor Rechargeable |
AC 100/220V,50/60 HZ |
| Operating Temperature |
-10°C~+40°C |
|
| OIML |
Approved |
|
| Option |
Back light printer (DEP-50) Wall bracket |
Printer ( DEP-50) Wall bra |
Capacity & Dimension
| Capacity |
6kg |
15kg |
30kg |
60kg |
150kg |
300kg |
| Resolution |
3kg / 0.001kg |
6kg / 0.002kg |
15kg / 0.005kg |
30kg / 0.01kg |
60kg / 0.02kg |
150kg / 0.05kg |
|
6kg / 0.002kg |
15kg / 0.005kg |
30kg / 0.01kg |
60kg / 0.02kg |
150kg / 0.05kg |
300kg / 0.1kg |
|
| Patter size (W’ x D’) |
280 x 280mm |
420 x 510mm |
500 x 645mm |
|||
| Product size (W x D x H ) |
280 x 350 x 530mm |
420 x 675 x 755mm |
500 x 725 x 755mm |
|||
| Product weight |
5kg |
14,7kg |
24kg |
|||
