Deskripsi Load Cell CAS BSA

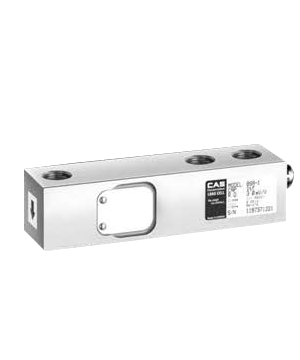

BSA (Imperial) Shear beam Load cell, 1klb – 10klb
FEATURES
● Imperial version
● NTEP III 5,000M approved (Handbook 44)
Protection Class IP66
OPTIONS
● NTEP III 5,000 M approved
● Pivot end loading version (-Tend)
SPECIFICATIONS
| Max capacity |
Kgf, |
20, 50, 100, 250, 500, 1tf, 2tf, 3tf, 5tf, 10tf, 20tf |
|
| Rated output |
mV/V |
3.0 ± 0.0075 |
|
| Zero balance |
mV/V |
0 ± 0.03 |
|
| Accuracy class |
|
D3 |
A5(III5,00M) |
| Combined error |
% |
0.03 |
0.025 |
| Repeatability |
% |
0.01 |
0.02 |
| Creep for 30 min |
% |
0.03 |
0.017 |
| Temperature effect on |
|
||
| Zero value |
%/10°C |
0.028 |
0.014 |
| Output value |
%/10°C |
0.015 |
0.011 |
| Excitation |
|
||
| Recommended |
V |
10 |
|
| Maximum |
V |
15 |
|
| Resistance |
|
||
| Input |
Ω |
350 ± 3.5 |
|
| Output |
Ω |
350 ± 3.5 |
|
| Insulation |
MΩ |
>2,000 |
|
| Compensated temperature range |
°C |
-10 to + 40 |
|
| Operating temperature range |
°C |
-30 to + 80 |
|
Material
Nickel plated steel
Mounting
| Capacity | Hexagon head-Bolt | Tightening torque |
| 1klb – 5 klb | 1/2 – 20UNF(10.9) | 100Nm |
| 5 klb (L) – 10 klb | 3/4 – 16UNF (10.9) | 350Nm |
Cable
Braided shield 4-wire round cable
with Urethane-jacket
Mounting Accessory
BSA-TW
| Model | Capacity |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
| BSA – 1 KLB | 1KLB |
1.0 (25,4) |
3.0 (76,2) |
5.12 (130) |
1.25 (32) |
1.25 (32) |
0.62 (15.8) |
0.53 (13.5) |
0.53 (13.5) |
0.63 (16.0) |
1/2 – 20UNF |
2.04 (52) |
| BSA – 2 KLB | 2KLB | |||||||||||
| BSA – 2,5 KLB | 2,5KLB | |||||||||||
| BSA – 4 KLB | 4KLB | |||||||||||
| BSA – 5 KLB | 5KLB | |||||||||||
| BSA – 5 KLB(L) | 5KLB |
1,5 38,1 |
3.75 (95.3) |
6.75 (171.5) |
1.5 (38) |
1.5 (38) |
0.75 (19) |
0.78 (20) |
0.78 (20) |
0.75 (19) |
3/4 – 16UNF |
3.00 (76.2) |
