Deskripsi Load Cell CAS BSS
BSS

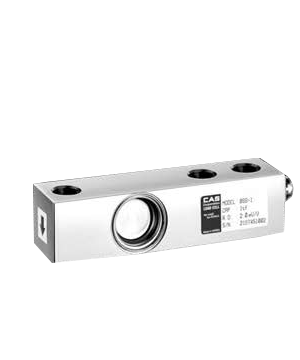

BSS Stainless sher beam load cell, 500kgf – 5tf
FEATURES
● Stainless steel construction
● OIML C3 approved (OIML R60)
● Ex s II T4 approved
● Protection class IP65
OPTIONS
● OIML C3 approved
SPECIFICATIONS
| Max. capacity |
kgf |
500,1tf,2tf,3tf,5tf |
|
| Rated output
Zero balance |
mV/V mV/V |
2.0 ± 0.005 0 ± 0.02 |
|
| Combined error
Repeatability Creep for 30 min. Temperature effect on Zero Value Output value |
% % %
%/10°C %/10°C |
0.03 0.01 0.03
0.028 0.014 |
0.025 0.01 0.017
0.014 0.011 |
| Excitation
Recommended Maximum Resistance Input Output Insulation |
V V
Ω Ω MΩ |
10 15
350 ± 3,5 350 ± 3,5 >2.000 |
|
| Compensated temperature range
Operating temperature range |
°C °C |
-10 to + 40 -30 to + 80 |
|
Material
Stainless Steel
|
Capacity |
Hexagon head-Bolt |
Tighting tourque |
|
500kgf-2TF |
M12 x 1.75(10.9) |
100Nm |
|
3TF-5TF |
M18 x 1.5(10.9) |
350Nm |
Cable
Braided Shield 4- wire round cable
With Urethane-jacket
Ordering Information
BSS-TW
Model |
Capacity |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
|
BSS-500L |
500kgf |
13.5 |
13.5 |
31.7 |
15.8 |
130 |
15.8 |
25.4 |
76.2 |
M12 x 1.75 |
31.7 |
52 |
|
BSS-1 |
1tfg |
|||||||||||
|
BSS-2 |
2tf |
|||||||||||
|
BSS-3 |
3tf |
20.0 |
20.0 |
38.1 |
19.1 |
171.5 |
19.0 |
38.1 |
95.3 |
M18 x 1.5 |
38.1 |
