Deskripsi Load Cell CAS DSB B

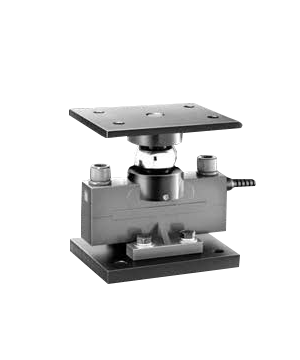

DSB – B truck weighing load cell, 10tf – 30tf
FEATURES
● Robust design and easy installlation
● Strong against shock or side force
● Protection class IP67
SPECIFICATIONS
Max. capacity |
kgf |
10,25,30 |
| Rated output
Zero balance |
mV/V mV/V |
2.0 ± 0.004 0 ± 0.02 |
|
|
C3(BC-X) |
|
| Combined error
Repeatability Creep for 30 min. Temperature effect on Zero Value Output value |
% % %
%/10°C %/10°C |
0.02 0.01 0.017
0.03 0.015 |
| Excitation
Recommended Maximum Resistance Input Output Insulation |
V V
Ω Ω MΩ |
10 15
800 ± 40 700 ± 7 >2.000 |
| Compensated temperature range
Operating temperature range |
°C °C |
-10 to + 40 -20 to + 70 |
Material
Paint finished steel
Cable
Braided shield 4-wire round cable
With P.V.C-jacket
