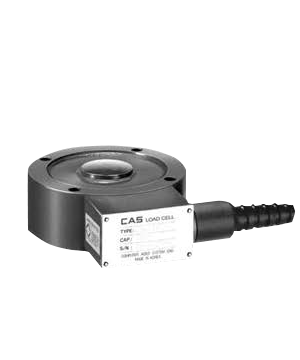

Deskripsi Load Cell CAS LSC
LSC pan cake load cell,2tf – 100tf
FEATURES
● High output(3mV/V)
● Hemetically sealed
● High reliability againt side force
● Low profile design
● Compression application only
SPECIFICATIONS
Material
Paint finished steel
Cable
Braided shield 4-wire round cable
With P.V.C-jacket
| Max. capacity |
kgf |
2,5,10,20,50,100 |
| Rated output
Zero balance |
mV/V mV/V |
3.0 ± 0.0075 0 ± 0.6 |
| Combined error
Repeatability Creep for 30 min. Temperature effect on Zero Value Output value |
% % %
%/10°C %/10°C |
0.05 0.02 0.03
0.03 0.03 |
| Excitation
Recommended Maximum Resistance Input Output Insulation |
V V
Ω Ω MΩ |
10 15
350 ± 3.5 350 ± 3,5 >2.000 |
| Compensated temperature range
Operating temperature range |
°C °C |
-10 to + 40 -50 to + 80 |
Material
Paint finished steel
Cable
Braided shield 4-wire round cable
With P.V.C-jacke
Ditambahkan pada: 17 July 2019
