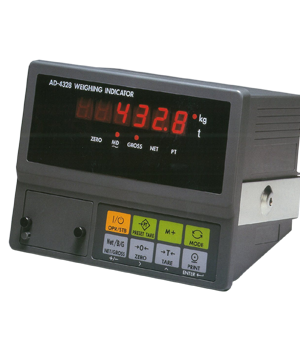

AND AD-4328

FEATURES : AND AD-4328 INDICATORS
1/10,000 display resolution Full Digital Calibration (FDC)
Large (14.2mm high), bright red LED display digits Desktop or panel mount display placement (Optional column or wall mounting)
Selectable units of measure : International version : kg or t, U.S. version: lb or kg A/D conversion rate of approx. 10 times / second
Easily selectable minimum divisions: 1, 2, 5, 10, 20, or 50 RFI / EMI protection
External control capability using up to 3 input signals: Select from Zero, Tare, Mode, Net / Gross, print or M+ HI / GO / LO comparator function
Weighing-in comparator function using 4 set points : Target, Free fall, Preliminary & near Zero Three relay outputs : Allows semi automated control by automatic activation of valves & gates and status lights & alarms
Flexible power sourcing : Nominal DC9V (DC6V to 12V), AC adapter input jack or input terminal

OPTIONS : AND AD-4328 INDICATORS
OP-01 Parallel BCD output (open collector transistor) OP-02 Output (open collector transistor)
OP-03 RS-422/485 with Comparator Relay Output OP-04 Serial RS-232C / Current Loop / Comparator Relay Output
