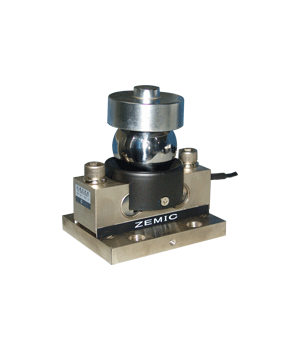

Zemic HM9A load cell are available in the capacities 10t to 50t, alloy steel construction, nickel plated, hermetically welded, oil-proof, waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments. Dual shear beam, suitable for electronic truck scales, railway scales and other elctronic weighing devices.

SPECIFICATIONS : ZEMIC HM9A LOAD CELL
Capacity	t	10/15/20/25/30/40/40SE/50
Accuracy		C1	C2	C3	A5M	B10M
Max number of verification intervals	n max	1000	2000	3000	5000	10000
Mini number of verification intervals	v min	Emax/3000	Emax/5000	Emax /10000	Emax /15000	Emax /10000
Combined error	%FS	≤ ±0.050	≤ ±0.030	≤ ±0.020	≤ ±0.026	≤ ±0.050
Creep	%FS/30min	≤ ±0.038	≤ ±0.024	≤ ±0.016	≤ ±0.017	≤ ±0.040
Temperature effect on sensitivity	%FS/10℃	≤ ±0.028	≤ ±0.017	≤ ±0.011	≤ ±0.013	≤ ±0.040
Temperature effect on zero	%FS/10℃	≤ ±0.047	≤ ±0.023	≤ ±0.015	≤ ±0.014	≤ ±0.020
Output sensitivity	mV/V	2.0 ± 0.002
Input resistance	Ω	700 ± 3.5
Output resistance	Ω	703 ± 3.5
Insulation resistance	MΩ	≥ 5000 (50VDC)
Zero balance	%FS	1.5
Temperature, compensated	℃	-10 ~ +40
Temperature, allowed	℃	-35 ~ +65
Excitation, Recommended	V	5 ~ 12 (DC)
Excitation, max	V	18 (DC)
Safe overload	%FS	150
Ultimate overload	%FS	300

FEATURES	ACCESSORIES
Capacity : 10t – 50t	Button
High accuracy	Steel ball
Alloy steel construction	Ball cup
Easy installation, reliable performance	Base plate
