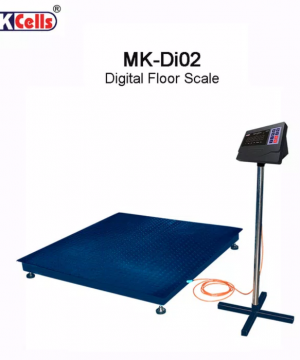

MK-Di02 Floor Scale

SPECIFICATION

Platform Size (mm) Capacity (kg) Readability (kg)
1000 x 1000 500 0,02
1000 x 1000 1000 0,05
1200 x 1200 500 0,02
1200 x 1200 1000 0,05
1200 x 1200 2000 0,1
1200 x 1500 2000 0,1
1200 x 1500 3000 0,1
1500 x 1500 1000 0,05
1500 x 1500 2000 0,1
1500 x 1500 3000 0,1
1500 x 1500 5000 0,2
1500 x 2000 1000 0,1
1500 x 2000 2000 0,1
1500 x 2000 3000 0,1
1500 x 2000 5000 0,2
2000 x 2000 1000 0,1
2000 x 2000 2000 0,1
2000 x 2000 3000 0,1
2000 x 2000 5000 0,2
2000 x 3000 2000 0,2
2000 x 3000 3000 0,2
2000 x 3000 5000 0,2



INTRODUCTION

MK-Di02 Digital Weighing Indicator can be used with 1 – 4 SLB-D or digital load cell. It has the function of accumulation and unit switch over and applies to small platform scale, weighbridge and farmers scale.

Characteristic And Function

  1. Plastic Housing
  2. Calibration switch code
  3. Support regular shutdown, random code decryption function
  4. Input password before calibration and adjusting
  5. Auto networking and auto auto-creating weighing scale system
  6. Automatic and manual corner-difference adjustment
  7. Power on, auto zero-setting range can be set separately, zero tracing range can be set
  8. Random charging by indicator
  9. RS232 communication interface, multi communication protocol
  10. Encryption function is available while load cell indicator is communicating
  11. Digital load cell SN checking, overload record checking function
  12. Equipped with EMC Protection



MAIN TECHNICAL PARAMETERS

Digital load cell interface RS485, Max transmission distance ≤75m;
Transmission speed rate 19200bps;
Digital load cell power supply DC 12V/750mA;
Digital load cell connection quantity 1-4 pcs
Digital load cell communication protocol MK-SLB-D Protocol
Display 6 LED digital tube with 1,2 inch red light, 7 state instruction;
Serial communication interface RS232, 600-19200bps optional;
Indicator power supply AC Switch power supply 110V-220V/AC, 50Hz;Optional DC: external connection batteries 12V/DC;
Operating temperature 0°C – 40°C Humidity: ≤85%(RH);
Storage temperature -10°C – 60°C Storage Humidity :≤95% (RH);
